DS-100S / DS-100SM
DS-500S

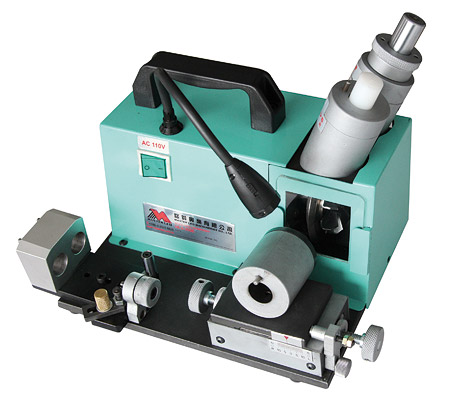

MLS-300E
MLS-300E
EASE OF OPERATION

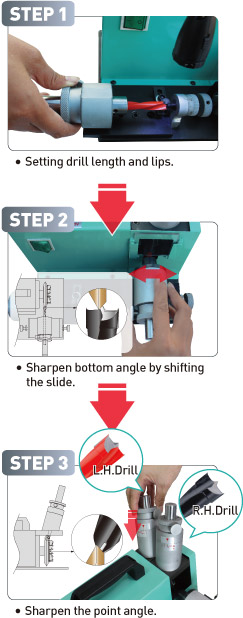

Sharpening a drill is easy to do by 3 steps.
No skilled operator is required.
Patented In:
Taiwan
China
Convenient Drill Length Setting
Drill length can be set conveniently by means of a setting pin. This assures consistent length for all drills used on a line boring machine.
Convenient Lips Setting
The two lips can be set conveniently by means of a setting pin. With the correct lips setting, you get accurate cutting lips sharpening.
Diamond Grinding Wheel
SD-200
The high quality diamond grinding wheel creates extra fine finish.
The sharpener is supplied with one diamond wheel.
Convenient Drill Length Setting
Flexible arm LED working light
SPECIFICATIONS:
Drill diameter range
Ø5 ~ Ø12 mm
Diamond wheel diameter
Ø80mm x 1PC (SD-200)
Diamond wheel speed
3450 RPM
Motor
60W, AC110V or 220V,
Single phase , 4530RPM

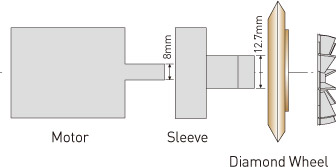

Motor shaft diameter
Motor shaft: Ø8mm
Sleeve:Ø12.7mm
Working light
LED
Net weight
12.5kgs
Gross weight
13kgs
Packing dimensions
300mm(L) x 240mm(W) x 200mm(H)
Specifications and design characteristics are subject to change without prior notice.
